Our Suites

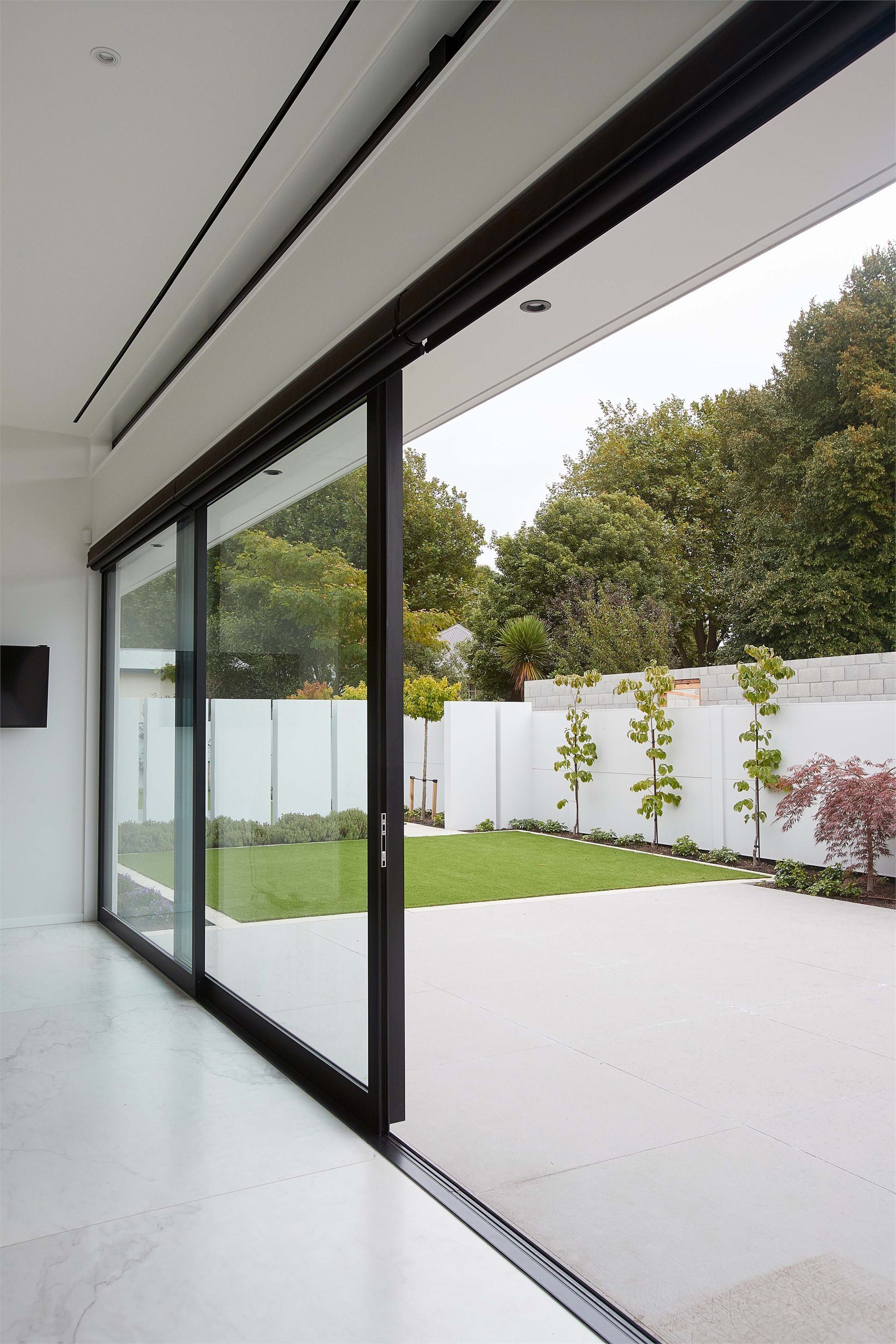

We have the right products for the right application. Our range of options offers a selection of choices for size, performance and functionality.

The First ranges

Residential Series



Clean, contemporary lines, smooth surfaces and generously sized profiles - that's the essence of the Residential Series. It is our most economical, mainstream range of windows and doors.

  • Recommended door height of 2.1m, however doors can potentially be higher depending on site conditions
  • A complete portfolio of window and door types, including custom-designed
  • Expertly designed to cater for the majority of residential building projects
  • Seamless transition using our flush sill sliding doors for the ultimate indoor-outdoor flow

Metro Series



Metro Series is all about clean lines and a contemporary look. It is a stylish and heavy-duty range, suitable for residential and architectural applications.

  • Recommended door height of 2.4m, however, doors can potentially be higher depending on site conditions
  • Clean, flat surfaces
  • Large-sized formats capable of handling a wide range of weather conditions engineered to stringent strength requirements
  • Flush sill-tracks maintain the clean-lined theme and assist indoor-outdoor flow for sliding doors

APL Architectural Series



Targeted at architectural homes and apartments, the APL Architectural Series of high-performance windows and doors are meticulously designed.

  • Recommended door height of 2.7m, however doors can potentially be higher depending on site conditions
  • Large formats suitable for most weather and environmental conditions
  • Square-edged shape and flush surfaces
  • Assured strength and versatility
  • Flushline sills and easy-glide panels available for sliding doors

ThermalHEART®



Our innovative ThermalHEART® technology takes the fight against winter cold a step further and sees a thermal insulator stitched into the core of every aluminium profile. ThermalHEART® can be added to Residential Series, Metro Series, or APL Architectural Series window and door options.

Klima Series



Based on a premium series from Europe by Kommerling and optimised for Kiwi conditions, Klima is the ultimate performer when it comes to keeping out the winter cold. Being made of highly durable uPVC, Klima Series windows and doors can also withstand the harshest sunlight.

Introducing ThermalHeart+®

Play Video

Did you know 35-50% of a home’s heat is lost from its windows and doors?

Introducing ThermalHeart+®, a range of code-meeting, industry-leading, thermally efficient products designed and made right here in New Zealand for exactly how we live.

Contact us to discuss your options, or visit the website to learn more about the ThermalHeart+® range.

ThermalHeart+®️ components

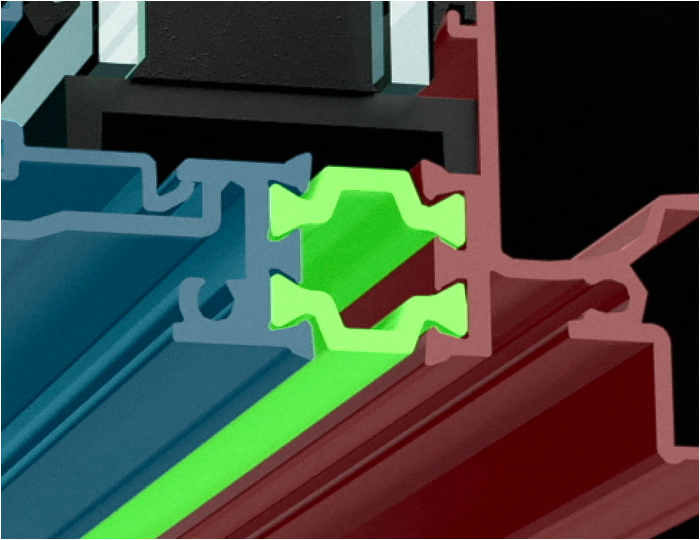

The ThermalHEART® polyamide barrier insulates the frame of the window system, separating warm and cold areas. Using clean, modern lines, these frames provide high performance in extreme weather conditions. ThermalHEART® frames deliver almost double the thermal performance of standard aluminium windows and doors1

Explore ranges

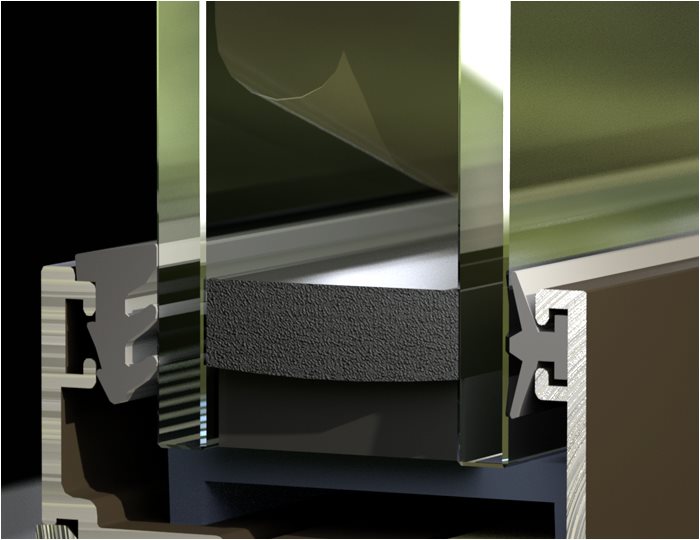

The ATS-Architectural Thermal Spacer® reduces the transfer of hot and cold temperatures. Argon gas creates an additional barrier to heat loss and improves insulation. Solux-E® is a low emissivity (Low-E) coating that reduces heat loss in winter and over-heating in summer. It protects your home's interior while providing a similar clarity to clear glass.

Explore state-of-the-art glass

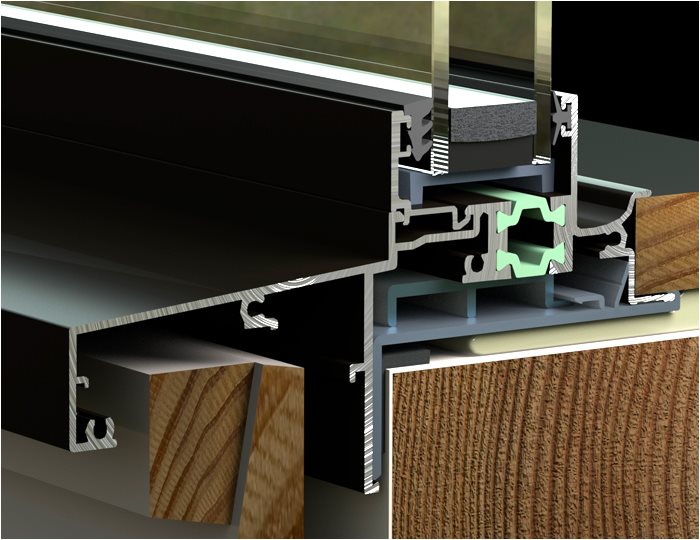

The Centrafix™ installation method recesses the joinery into the building wall, aligning the insulation elements - wall, window frame, glazing – to prevent cold air from circulating around the frame. This New Zealand designed innovation increases the thermal performance in your home by over 20%2 (see here for technical details).

Discover Centrafix™

1 Comparison figures are based on complete thermal modelling of an average house lot of Metro Series ThermalHEART® products with The AGP System® double glazing using the WEERS modelling methodology. The benchmark figures were calculated by modelling the same average house lot of products using the equivalent non-thermally broken products glazed with standard double glazing. A “standard aluminium window or door” refers to a non-thermally broken aluminium frame with standard double glazing.

Centrafix™ comparison figures are based on complete thermal modelling of an average house lot of products installed in 90mm timber framing. The standard installation benchmark was calculated by modelling the same house lot of comparable products using a typical E2/AS1 cavity construction installation on 90mm timber framing.

If thermal efficiency is among your top priorities, Klima Series® is a smart bet

Based on a premium series from Europe by Kömmerling and designed and manufactured in New Zealand to suit Kiwi conditions, Klima Series® is the ultimate energy-efficient window and door solution. From November 2023, the minimum insulation requirements for cooler climate zones increased to the final performance requirements, as outlined in the H1 Clause of the New Zealand Building Code. Klima Series® exceeds the highest standard for each zone, so you can feel confident knowing you’re ahead of the game.

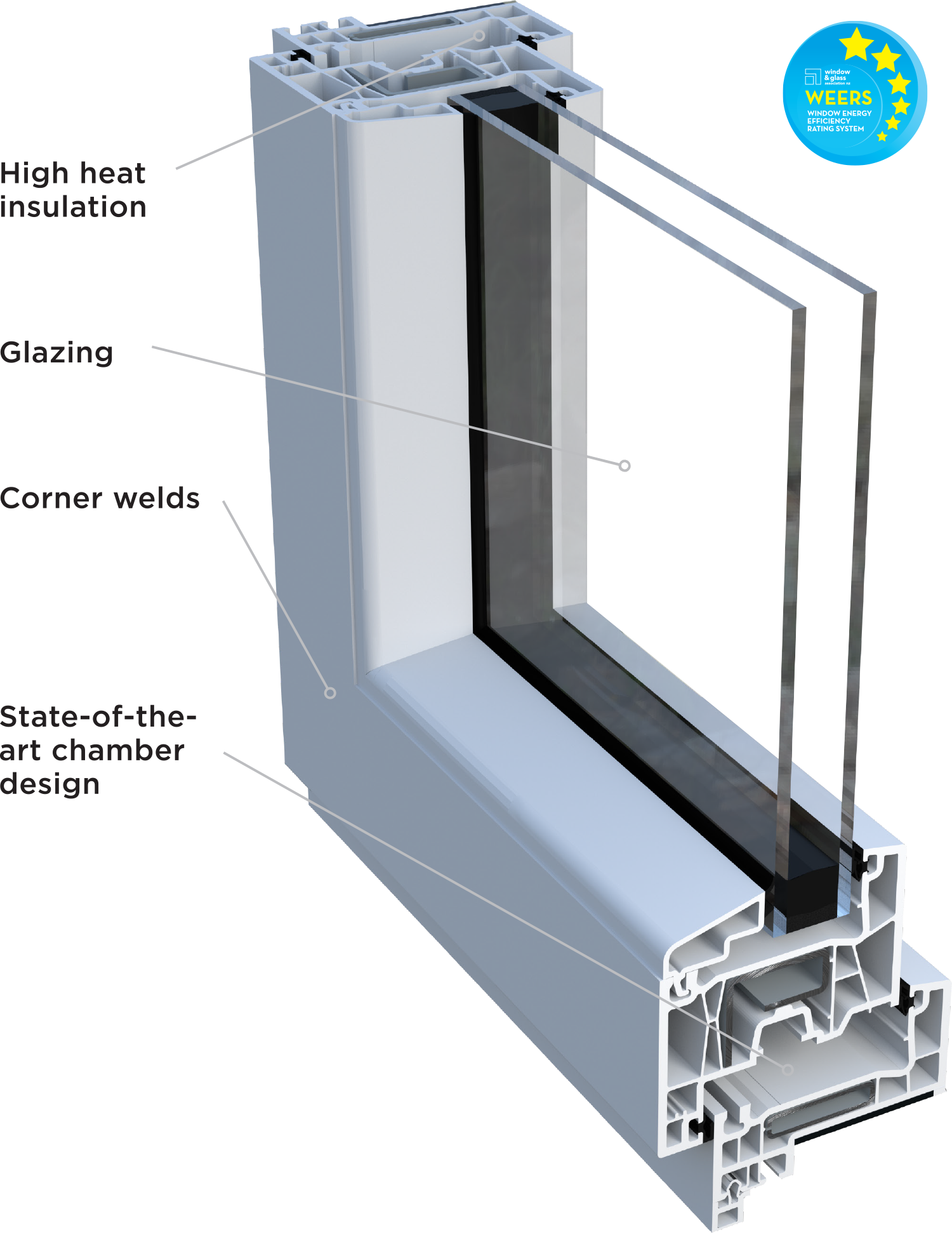

Key features of Klima Series® include:

  • A maximum 6 energy stars under WEERS (Window Energy Efficiency Rating System) when used with high performance glazing
  • State-of-the-art multi chamber design
  • Seamless welded corners for extra strength
  • Super thick profiles for maximum thermal insulation, high quality weather resistance, and strength in high wind zones
  • Available in a standard range of windows and doors, with the exception of a bi-fold format
  • Aligns with standard industry installation practices for ease of installation
Why choose Klima Series®?
  • Thermal efficiency – a thermally efficient home can be cheaper to warm compared to one built to code
  • Healthier Home – an affordable investment to create a healthy home that is warm, comfortable, and dry
  • Noise Reduction – Klima Series® offers excellent levels of noise reduction
  • Durability – thanks to the highly durable nature of uPVC, Klima Series® shows no sign of degrading or discolouring

For more information, view the Klima Series® brochure or visit the website here.
